35 Coffee Machine Parts and Functions: Complete Guide With Names and Uses

Coffee machine parts and functions determine how efficiently a machine brews coffee, controls temperature, and delivers consistent flavor. The main components include the water pump, heating element, boiler, brew group, filter basket, and control panel, each serving a specific purpose.

Understanding these 35 coffee machine parts and their functions helps beginners identify components, troubleshoot common problems, and maintain their equipment properly.

Whether you use a drip coffee maker, an automatic coffee machine, or an espresso machine, knowing how the major parts work together makes coffee preparation easier. This guide explains each component, its function, maintenance needs, and common warning signs.

Coffee Machine Parts and Functions: Quick Overview

No.	Coffee Machine Part	Main Function
1	Group Head	Distributes hot water to the coffee grounds
2	Portafilter	Holds the filter basket during extraction
3	Filter Basket	Holds ground coffee and filters the espresso
4	Tamper	Compresses coffee grounds evenly
5	Shower Screen	Distributes water across the coffee puck
6	Group Head Gasket	Prevents leaks around the portafilter
7	Brew Pressure Gauge	Displays brewing pressure
8	Brew Switch	Starts and stops the brewing process
9	Water Reservoir	Stores water for brewing
10	Water Pump	Moves water through the machine
11	Water Inlet Valve	Controls incoming water flow
12	Flow Meter	Measures water flow for volume-based brewing

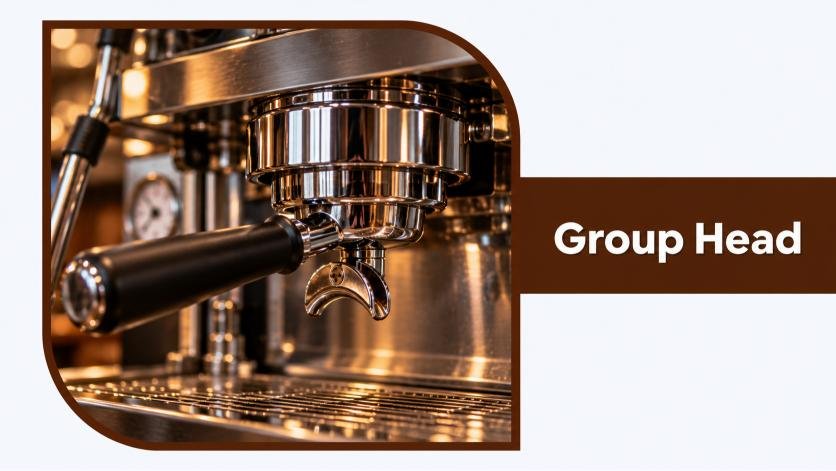

1. Group Head

Think of the group head as the final gateway between hot water and your coffee grounds. It is one of the most important components in an espresso machine because it distributes brewing water into the coffee puck. The group head also provides the connection point for the portafilter, helping maintain a secure seal during extraction. Keeping this component clean is essential for consistent coffee flavor and reliable machine performance.

Main Functions of the Group Head

• Directs hot water toward the coffee grounds.
• Holds the portafilter securely during extraction.
• Supports consistent brewing pressure.
• Helps deliver water to the coffee puck.

Common Types of Group Heads

Different espresso machines use different group head designs. The E61 group head is a traditional design found in many prosumer machines, while saturated group heads are closely integrated with the boiler to support temperature stability. Other designs use different heating arrangements to manage brewing temperature. Each type has its own construction and maintenance requirements, so the best option depends on the machine’s intended use.

How to Clean and Maintain the Group Head

After preparing coffee, remove loose grounds and wipe the group head area with a suitable cleaning brush. Pay attention to the gasket and shower screen, where coffee residue can accumulate. If your machine supports backflushing, follow the manufacturer’s cleaning instructions. Regular maintenance prevents residue buildup and helps water flow properly during extraction.

Signs of Group Head Problems

Water leaking around the portafilter, uneven water distribution, or difficulty locking the portafilter into position may indicate a problem. Sometimes, the cause is simply a dirty shower screen or worn gasket rather than the group head itself. Clean the accessible components first and arrange professional servicing if the issue continues.

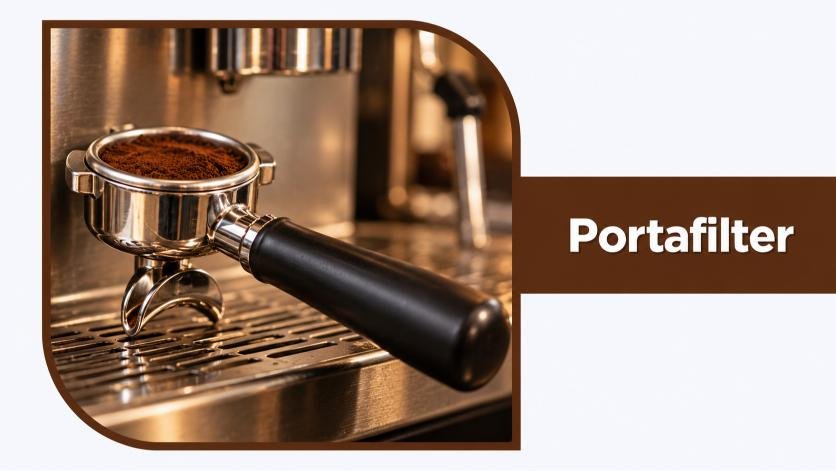

2. Portafilter

The portafilter is the handled component that holds the filter basket filled with ground coffee. It locks into the group head and creates the connection needed for espresso extraction. For many coffee enthusiasts, it is one of the most familiar parts of the machine because it is handled every time a shot is prepared. A suitable portafilter, combined with proper coffee preparation, helps make the brewing process more consistent.

Main Functions of the Portafilter

• Holds the filter basket and ground coffee.
• Locks into the group head.
• Keeps the coffee bed in position during extraction.
• Directs espresso toward the cup through its outlet design.

Common Types of Portafilters

A spouted portafilter directs espresso through one or two outlets, making it convenient for serving individual cups. A bottomless portafilter exposes the underside of the basket, allowing users to observe extraction and identify uneven flow. Pressurized portafilters use a specially designed basket or outlet to help generate pressure, which can be useful with some entry-level machines. Always check compatibility before choosing a replacement.

How to Clean and Maintain the Portafilter

Remove the basket after brewing and rinse both components with warm water. Clean the spouts and handle area regularly to prevent coffee oils from building up. For deeper cleaning, use a suitable espresso equipment cleaner according to the manufacturer’s instructions. Rinse thoroughly before brewing again so cleaning residue does not affect the taste of your coffee.

Signs of Portafilter Problems

A loose handle, blocked spout, damaged basket holder, or leaking connection can affect brewing performance. If the portafilter becomes difficult to lock into the group head, inspect the gasket and check that the component is compatible with your machine. Replacing a damaged portafilter can restore a secure fit and make daily coffee preparation easier.

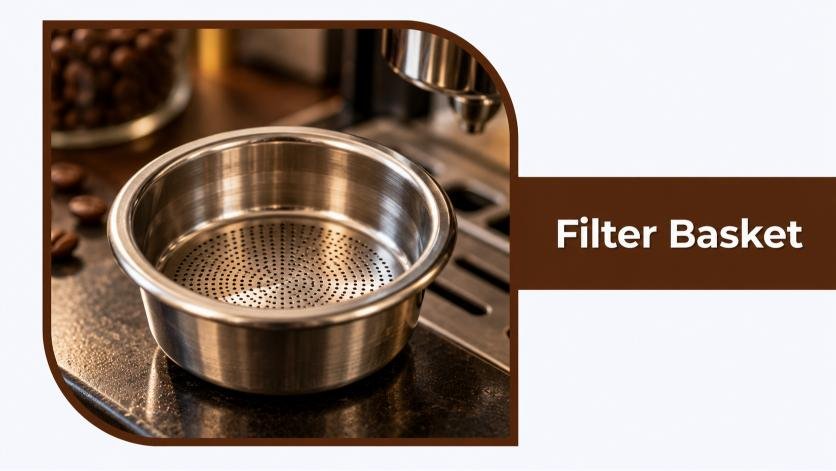

3. Filter Basket

Small but essential, the filter basket holds the measured amount of ground coffee inside the portafilter. Its perforated base allows brewed espresso to pass through while retaining most of the coffee grounds. Basket size, hole design, and dose capacity can influence extraction, which is why choosing the correct basket matters. A clean basket also helps prevent unwanted flavors caused by old coffee oils and residue.

Main Functions of the Filter Basket

• Holds ground coffee during extraction.
• Allows espresso to flow through its perforations.
• Helps determine the coffee dose used for a shot.
• Supports consistent water flow through the coffee puck.

Common Types of Filter Baskets

Single baskets are designed for smaller doses, while double baskets accommodate larger quantities and are widely used for double espresso shots. Precision baskets are manufactured to specific dimensions and tolerances to support repeatable extraction. Pressurized baskets have a restricted outlet that helps build pressure in certain entry-level machines. The appropriate choice depends on your espresso machine, basket size, grinder, and preferred brewing method.

How to Clean and Maintain the Filter Basket

Tap out the used coffee puck and rinse the basket after each shot. Check the small holes for trapped grounds, and periodically clean away accumulated oils using an appropriate cleaning product. Avoid damaging the perforations with sharp tools. If the basket remains blocked or becomes visibly damaged, replacing it with a compatible model may improve brewing consistency.

Signs of Filter Basket Problems

Slow extraction, uneven flow, and persistent residue can indicate a dirty or damaged basket. However, these symptoms may also result from an unsuitable grind size, excessive coffee dosing, or poor distribution. Clean the basket before changing other brewing variables. If it is bent or no longer fits securely in the portafilter, consider replacing it.

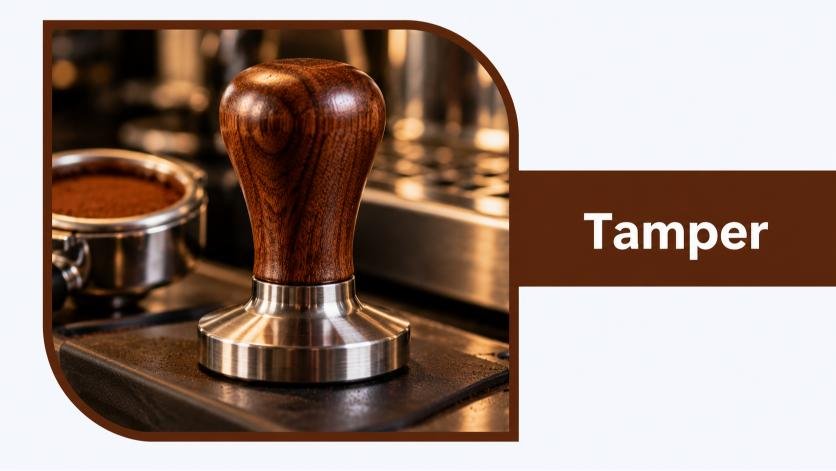

4. Tamper

A tamper is a handheld tool used to compress ground coffee inside the filter basket before extraction. Although it is not usually built into the machine, it is an essential accessory for many espresso brewing setups. The goal is to create a level, evenly compressed coffee bed so water can pass through the grounds more consistently. Good tamping technique focuses on a level surface and repeatable preparation rather than applying excessive force.

Main Functions of a Tamper

• Compresses coffee grounds into a stable puck.
• Creates a level coffee surface.
• Helps reduce uneven extraction when combined with good distribution.
• Supports consistent preparation from shot to shot.

Common Types of Tampers

Traditional tampers feature a handle and a flat base that the user presses down manually. Calibrated tampers are designed to provide a more repeatable tamping force, while spring-loaded versions use a spring mechanism to guide pressure. Some tools combine a distribution feature with a tamper. Before purchasing one, check its diameter to ensure that it fits your filter basket properly.

How to Use and Maintain a Tamper

Distribute the ground coffee evenly inside the basket before tamping. Hold the tamper level and apply steady pressure to create a flat surface. Keep the base clean so old coffee residue does not transfer to the fresh grounds. Store the tamper safely and avoid dropping it, as damage to the base can affect how evenly it contacts the coffee bed.

Signs of Tamping Problems

An uneven coffee surface, inconsistent shot times, or irregular extraction may suggest poor distribution or tamping technique. These issues can also be caused by grind size, dose, or other brewing variables. Focus on using a level tamp and consistent preparation. More force alone will not necessarily produce better espresso.

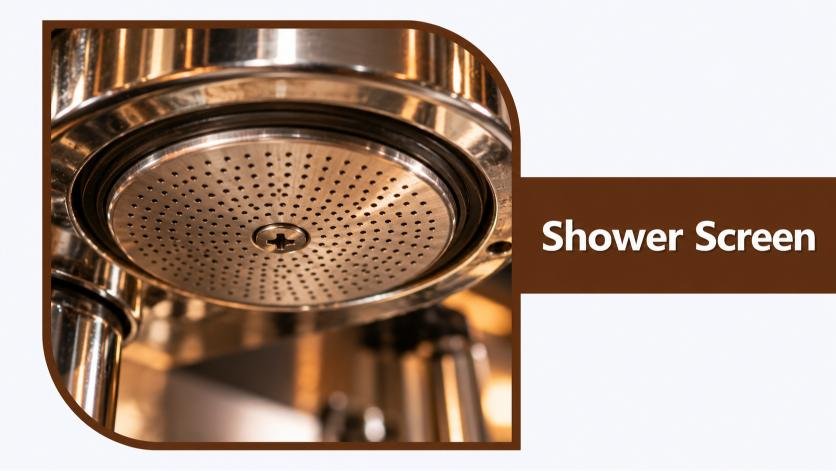

5. Shower Screen

The shower screen sits inside the group head and helps distribute incoming brewing water across the coffee puck. Its many small openings spread water over the coffee rather than allowing it to enter through one concentrated point. Because it is exposed to coffee grounds, oils, heat, and water minerals, the screen can gradually become dirty or blocked. Routine cleaning helps preserve proper water distribution and supports a cleaner-tasting espresso.

Main Functions of the Shower Screen

• Distributes water across the coffee puck.
• Helps spread water over the coffee bed.
• Separates the coffee puck from the group head’s water outlet.
• Supports consistent extraction when clean and correctly fitted.

Common Types of Shower Screens

Standard shower screens use a conventional pattern of perforations to distribute water. Precision screens are manufactured to specific designs and tolerances, while some specialized models use coatings intended to make cleaning easier. The screen must match the group head because hole patterns, dimensions, and mounting methods vary between machines. Consult the manufacturer’s specifications before buying a replacement.

How to Clean and Maintain the Shower Screen

Wipe the screen and surrounding area after brewing to remove loose coffee grounds. Periodically clean it more thoroughly according to the machine’s instructions. Remove the screen only when the manufacturer permits it, and use approved cleaning products where appropriate. Reinstall it correctly before brewing again. Regular cleaning helps prevent blocked openings and reduces the buildup of coffee oils.

Signs of Shower Screen Problems

Uneven water distribution, visible deposits, or water spraying abnormally from the group head may indicate that the screen needs attention. A loose or incorrectly fitted screen can also affect performance. Clean it first and check its installation. If the problem continues, inspect the gasket and other group head components or arrange professional servicing.

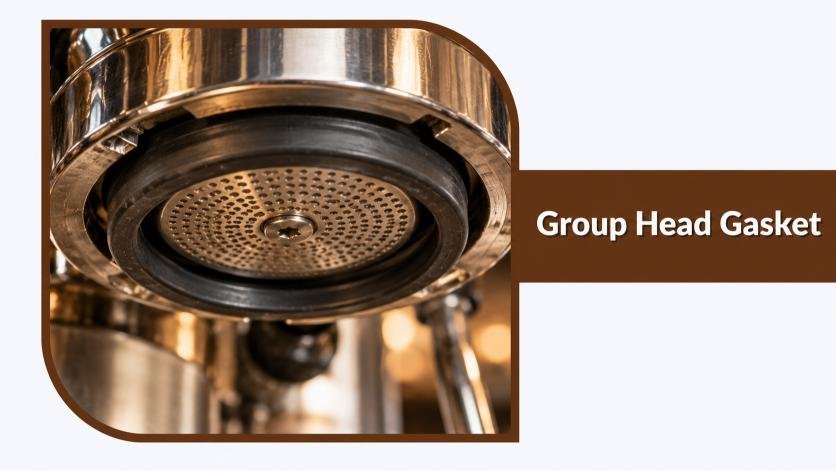

6. Group Head Gasket

The group head gasket is a flexible seal fitted around the group head where the portafilter locks into place. Its job is simple but important: it prevents hot water from leaking out of the connection during extraction. Repeated exposure to heat, pressure, and coffee residue can cause the gasket to harden or lose its shape. Replacing a worn gasket at the right time helps restore a secure seal and keeps the brewing area cleaner.

Main Functions of the Group Head Gasket

• Seals the connection between the portafilter and group head.
• Prevents water from leaking during extraction.
• Helps the portafilter fit securely.
• Supports proper operation of the brewing system.

Common Types of Group Head Gaskets

Rubber gaskets are widely used because they provide a flexible seal, while silicone versions are often selected for their flexibility and heat resistance. Gaskets also vary in thickness, diameter, and shape according to the machine’s design. An incorrectly sized gasket may cause leaks or make the portafilter difficult to lock. Always select a replacement specified for your model.

How to Maintain the Group Head Gasket

Clean coffee grounds and oils from the area around the gasket regularly. Inspect the seal for cracking, hardening, or flattening, especially if the portafilter no longer fits as securely as before. Replace the gasket when it becomes worn, following the manufacturer’s instructions. Proper cleaning and timely replacement can help prevent leaks and reduce unnecessary strain on the portafilter.

Signs of a Worn Group Head Gasket

Water leaking around the portafilter is one of the most noticeable warning signs. You may also find that the handle locks into an unusual position or that the gasket looks cracked or compressed. Dirt around the sealing surface can produce similar symptoms, so clean the area before replacing the component. If leakage persists, inspect the gasket and arrange servicing if needed.

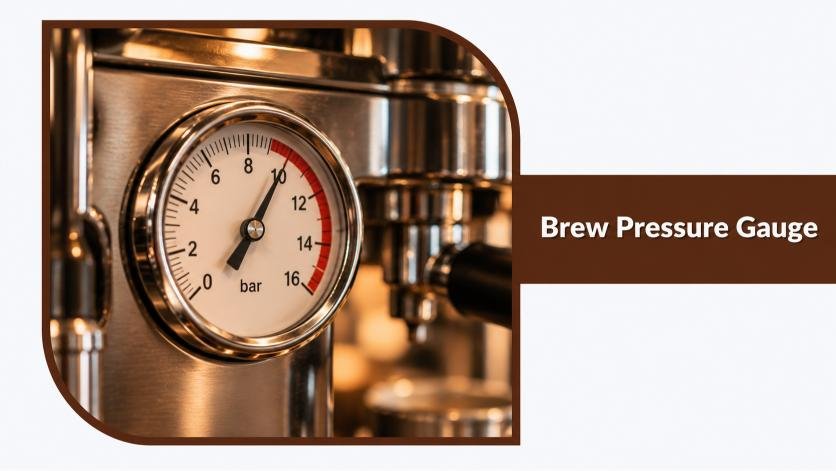

7. Brew Pressure Gauge

A brew pressure gauge gives users a visual reading of the pressure generated during espresso extraction. It can be helpful when learning how a machine behaves under brewing conditions or troubleshooting an apparent pressure problem. Some machines feature a dedicated brewing gauge, while others use digital displays or have no gauge at all. Although the reading provides useful information, pressure alone cannot determine whether a shot will taste good; grind size, coffee dose, and extraction time matter too.

Main Functions of the Brew Pressure Gauge

• Displays brewing pressure during extraction.
• Helps users monitor pressure behavior.
• Supports troubleshooting when readings appear abnormal.
• Provides feedback during machine testing and adjustment.

Common Types of Pressure Gauges

Analog gauges display pressure using a needle and numbered dial. Digital displays show the reading numerically and may be integrated into the machine’s electronic controls. Some machines use combined gauges to display brewing and steam pressure separately. Each design has a specified measurement range and installation method, so replacement gauges must be compatible with the machine.

How to Maintain the Brew Pressure Gauge

Keep the gauge face clean and check that its readings behave normally during brewing. Avoid hitting the gauge or forcing its fittings. If the needle becomes stuck or the display behaves unexpectedly, consult the machine’s instructions. Any inspection involving pressurized connections should be performed safely, preferably by a qualified technician.

Signs of Brew Pressure Gauge Problems

A needle that fails to move, readings that fluctuate unusually, or measurements that do not match the machine’s performance may indicate a gauge or pressure-system issue. Leakage around the gauge connection also requires attention. Since a faulty pump or blocked water path can produce similar symptoms, professional diagnosis may be needed to identify the actual cause.

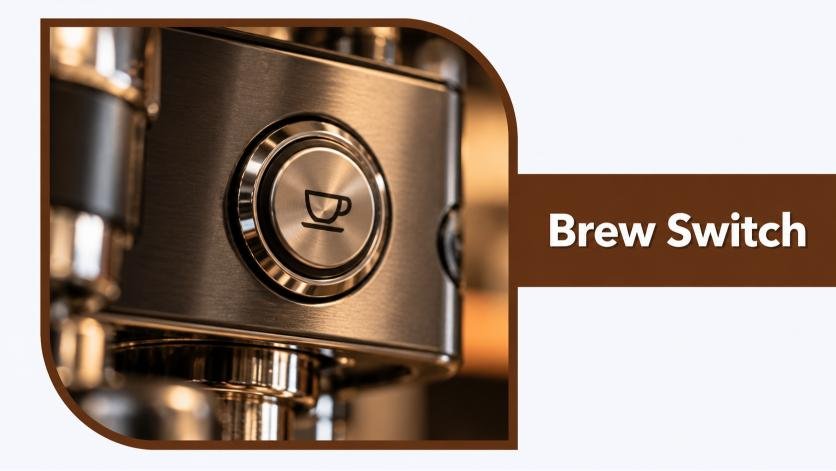

8. Brew Switch

The brew switch is the control used to start and stop espresso extraction. Depending on the machine, it may be a simple toggle, a push button, or an electronic control linked to a programmable brewing system. When activated, it signals the machine to begin delivering water to the coffee. A responsive brew switch makes the machine easier to operate and helps users control their brewing routine.

Main Functions of the Brew Switch

• Starts the brewing cycle.
• Stops water delivery when extraction is complete.
• Activates the pump or brewing control system.
• Supports manual or programmed shot preparation.

Common Types of Brew Switches

Toggle switches use a lever that moves between operating positions. Push-button switches operate with a simple press, while programmable buttons can deliver preset shot volumes on compatible machines. Some newer machines use touchscreen controls instead of a dedicated physical switch. The right control system depends on the machine’s design and the user’s preferred level of automation.

How to Maintain the Brew Switch

Keep the control area clean and dry, and avoid pressing the switch with excessive force. Follow the manufacturer’s instructions for cleaning the machine’s exterior. If the switch sticks, feels loose, or stops responding, arrange appropriate servicing. Electrical components should never be opened or repaired while the machine is connected to power.

Signs of Brew Switch Problems

If the machine fails to start brewing, stops unexpectedly, or responds intermittently, the brew switch may need inspection. A control that feels stuck or loose can also indicate wear. However, pump failures, wiring problems, or electronic faults can cause similar symptoms. Consult the machine’s troubleshooting guide before arranging professional repair.

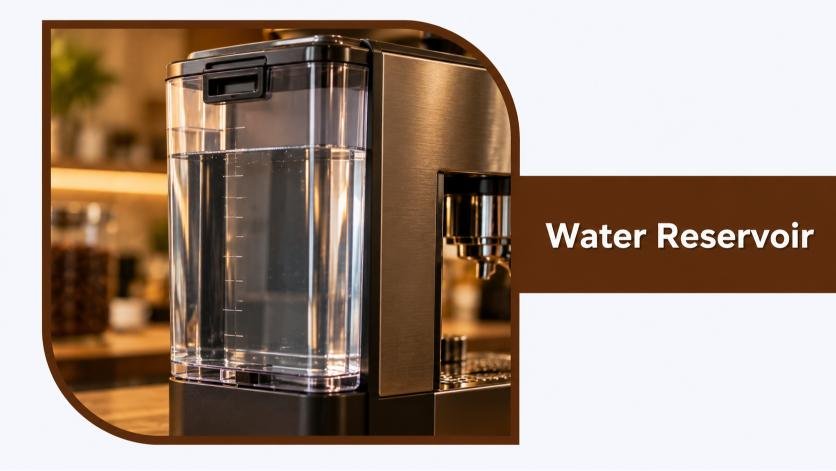

9. Water Reservoir

The water reservoir stores the water used to prepare coffee. It is commonly found in home espresso machines and can often be removed for convenient refilling and cleaning. The reservoir supplies water to the machine’s pump, making it an essential part of the brewing process. Keeping the tank clean and using suitable water helps prevent unwanted odors, reduces mineral buildup, and supports reliable machine operation.

Main Functions of the Water Reservoir

• Stores water for brewing.
• Supplies water to the pump.
• Allows convenient refilling.
• Makes routine water replacement and cleaning easier.

Common Types of Water Reservoirs

Removable reservoirs can be lifted out of the machine for filling and cleaning. Fixed reservoirs remain attached but can usually be accessed through a lid or opening. Some models accommodate water filters designed to manage mineral content or improve water quality. Reservoir capacity and design vary, so check the machine’s manual for suitable water and compatible filter recommendations.

How to Clean and Maintain the Water Reservoir

Empty and rinse the reservoir regularly, following the manufacturer’s instructions. Refill it with water suitable for your machine, and avoid leaving stagnant water inside for extended periods. If a filter is installed, replace it according to its recommended schedule. Inspect the tank for cracks, deposits, or leaks, and make sure it is correctly positioned before operating the machine.

Signs of Water Reservoir Problems

Cracks, leaking connections, unusual odors, or visible deposits may indicate that the reservoir needs cleaning or replacement. If the machine fails to draw water, check that the reservoir contains enough water and is seated properly. A pump or inlet problem may also be responsible. If basic checks do not solve the issue, consult the machine’s troubleshooting instructions.

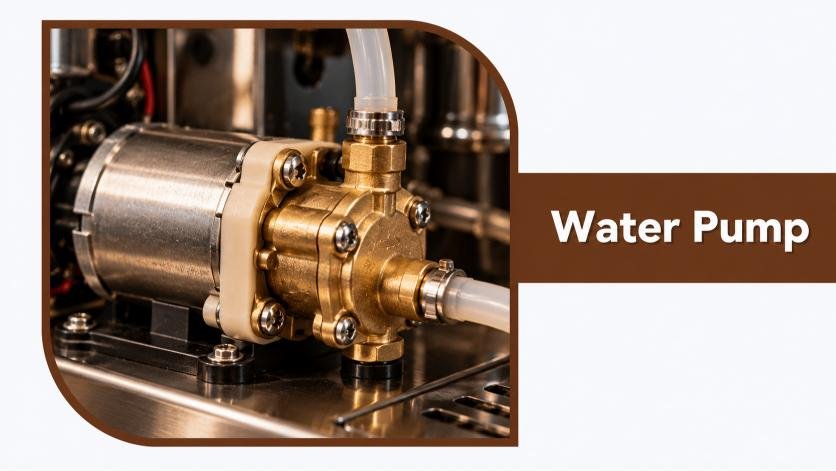

10. Water Pump

The water pump moves water through the coffee machine and supplies the pressure needed for espresso extraction. Depending on the design, it draws water from a reservoir or receives it from a direct plumbing connection. The pump works alongside the heating system and pressure-control components to deliver water to the brewing system. When it operates properly, it supports reliable extraction; when it struggles, water flow and brewing performance may suffer.

Main Functions of the Water Pump

• Moves water toward the heating and brewing systems.
• Provides pressure for espresso extraction.
• Supports consistent water delivery.
• Works with pressure-control components to manage brewing conditions.

Common Types of Water Pumps

Vibratory pumps are common in home espresso machines and generate pressure through a vibrating mechanism. Rotary pumps use a rotating mechanism and are often found in commercial or higher-end machines. Gear pumps are used in some specialized equipment where controlled water delivery is required. Each type has different operating characteristics, so replacement pumps must match the machine’s specifications.

How to Maintain the Water Pump

Use suitable water and follow the manufacturer’s recommendations for descaling and maintenance. Ensure that the reservoir contains enough water before brewing, and avoid running the machine without an adequate water supply. If the pump becomes unusually noisy or water flow decreases, check basic supply conditions first. Persistent problems should be inspected by a qualified technician.

Signs of Water Pump Problems

Low pressure, unusual pump noise, little or no water flow, and difficulty drawing water from the reservoir may indicate a pump-related problem. However, a blocked water path or air trapped in the circuit can cause similar symptoms. Check the reservoir and follow the manufacturer’s troubleshooting instructions before arranging repairs.

11. Water Inlet Valve

The water inlet valve controls water entering the coffee machine’s internal water system. Depending on the design, it may regulate water supplied from a reservoir or a direct plumbing connection. The valve helps ensure that water reaches the appropriate components when required. If it becomes blocked or fails to operate correctly, the machine may struggle to fill, brew, or maintain a consistent water supply.

Main Functions of the Water Inlet Valve

• Controls incoming water flow.
• Helps direct water into the internal water circuit.
• Supports reliable water supply.
• Prevents unwanted water flow when properly closed.

Common Types of Water Inlet Valves

Some inlet valves use an electrical solenoid to control water flow, while others operate through mechanical arrangements. Direct-plumbed machines may use valves designed for connection to a pressurized water supply. The valve’s construction depends on the machine’s water system, so it is important to choose a replacement that matches the model and operating requirements.

How to Maintain the Water Inlet Valve

Follow the manufacturer’s instructions for maintaining the water circuit and descaling the machine when appropriate. Mineral deposits or debris can restrict water flow through the valve. If the machine fills slowly or fails to draw water, check the supply and reservoir first, where applicable. Internal valve inspection should be performed safely by a qualified technician when necessary.

Signs of Water Inlet Valve Problems

Slow filling, no incoming water, or water continuing to flow when it should stop may indicate a valve issue. However, a restricted supply line, empty reservoir, or pump problem can produce similar symptoms. Check the basic water supply before assuming the valve is faulty. If the problem persists, professional inspection can help identify the cause.

12. Flow Meter

A flow meter measures the amount of water moving through a coffee machine. It is commonly used in automatic and volumetric espresso machines that stop brewing after delivering a programmed water volume. By sending flow information to the machine’s controller, the component helps produce more repeatable shot sizes. Although a flow meter improves control, the final espresso still depends on factors such as grind size, coffee dose, and the condition of the brewing system.

Main Functions of the Flow Meter

• Measures water moving through the machine.
• Supports automatic shot-volume control.
• Sends flow information to the control system.
• Helps produce repeatable brewing volumes.

Common Types of Flow Meters

Many espresso machines use electronic flow meters that detect water movement and send signals to a controller. Some designs contain a small rotating component that generates pulses as water passes through it. The controller interprets these signals to estimate the delivered volume. Flow meter designs differ between manufacturers, so replacement parts must be compatible with the machine’s water circuit and electronics.

How to Maintain the Flow Meter

Follow the manufacturer’s instructions for descaling and maintaining the water circuit. Mineral deposits or debris may interfere with the meter’s moving parts or sensor. Avoid dismantling the component unless the service procedure permits it. If programmed shots repeatedly stop too early or run too long, check the settings and water supply before arranging professional inspection.

Signs of Flow Meter Problems

Inconsistent shot volumes, automatic brewing cycles that stop unexpectedly, or extraction that continues beyond the programmed amount may indicate a flow meter problem. Some machines may also display an error if water movement is not detected. These symptoms can also result from blocked pipes or incorrect settings, so further diagnosis may be needed before replacing the component.

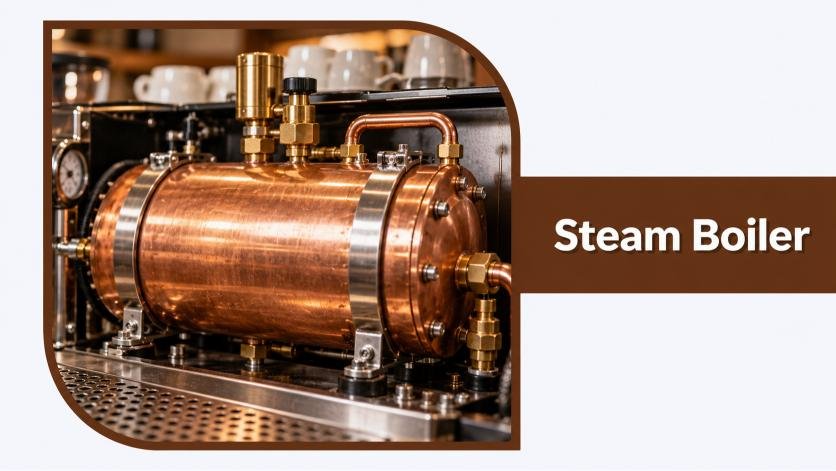

13. Boiler

The boiler is the component responsible for heating water inside many espresso machines. It supplies hot water for brewing and, depending on the design, may also produce steam for milk frothing. A stable temperature helps extract coffee flavors more consistently, making the boiler an important part of the brewing system. Some machines use a single boiler, while others have separate brewing and steaming boilers. Understanding the boiler’s role makes it easier to recognize heating problems and maintain your coffee machine properly.

Main Functions of the Boiler

• Heats water for espresso extraction.
• Supplies hot water to the brewing system.
• Produces steam in machines designed for combined brewing and steaming.
• Helps maintain suitable operating temperatures.

Common Types of Boilers

Espresso machines use different boiler designs depending on their size and purpose. A single-boiler machine uses one boiler for brewing and steaming, usually requiring a temperature change between the two functions. Heat-exchanger machines use a separate water path for brewing, while dual-boiler machines have independent boilers for brewing and steam production. Each design offers different advantages in temperature control, workflow, and performance.

How to Clean and Maintain the Boiler

Boiler maintenance depends on the machine’s design and the quality of the water used. Follow the manufacturer’s recommendations for descaling and routine servicing, as mineral deposits can accumulate over time. Some machines require professional descaling rather than a user-performed procedure. Never open a hot or pressurized boiler. Allow the machine to cool and depressurize according to its instructions, and leave internal repairs to a qualified technician.

Signs of Boiler Problems

Inconsistent brewing temperatures, insufficient steam, slow heating, and persistent heating errors may indicate a boiler-related issue. Leaks or unusual noises also deserve attention. However, these symptoms can result from a faulty heating element, thermostat, temperature sensor, or control system. If basic troubleshooting does not resolve the issue, arrange professional inspection to identify the actual cause.

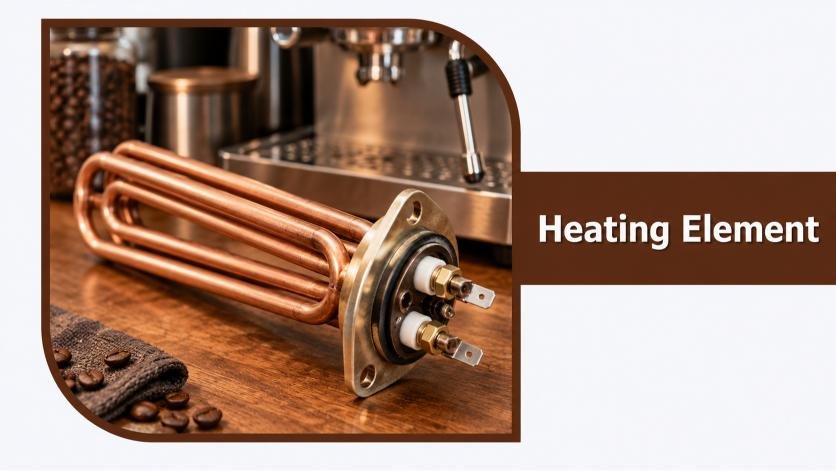

14. Heating Element

The heating element converts electrical energy into heat, warming the water used for coffee brewing and, in some machines, steam production. It is commonly installed inside a boiler or incorporated into another heating assembly. The heating element works with temperature sensors and control components to maintain the required operating temperature. Without a properly functioning heating system, an espresso machine may struggle to produce hot water, extract coffee consistently, or generate enough steam for milk-based drinks.

Main Functions of the Heating Element

• Converts electrical energy into heat.
• Warms water inside the boiler or heating system.
• Supports brewing and steaming temperatures.
• Works with temperature controls to regulate heating.

Common Types of Heating Elements

Many traditional espresso machines use immersion heating elements installed inside a boiler. Other machines use thermoblock systems, which heat water as it passes through a heated channel rather than storing a large volume of hot water. The design affects heating speed, temperature behavior, and maintenance requirements. Replacement elements must match the machine’s electrical rating, physical dimensions, and manufacturer specifications.

How to Maintain the Heating Element

Use suitable water and follow the manufacturer’s recommendations for descaling and servicing. Mineral deposits can accumulate on heating surfaces and reduce heating efficiency. If the machine heats slowly or fails to reach its normal temperature, the element may not be the only possible cause; sensors, wiring, and control components can also be responsible. Electrical testing and replacement should be performed by a qualified technician.

Signs of Heating Element Problems

A machine that fails to heat water, takes unusually long to reach operating temperature, or repeatedly displays a heating error may have a damaged heating element. Electrical faults can also cause a circuit breaker to trip. Stop using the machine if you notice burning smells, visible electrical damage, or other signs of an electrical fault, and arrange professional servicing.

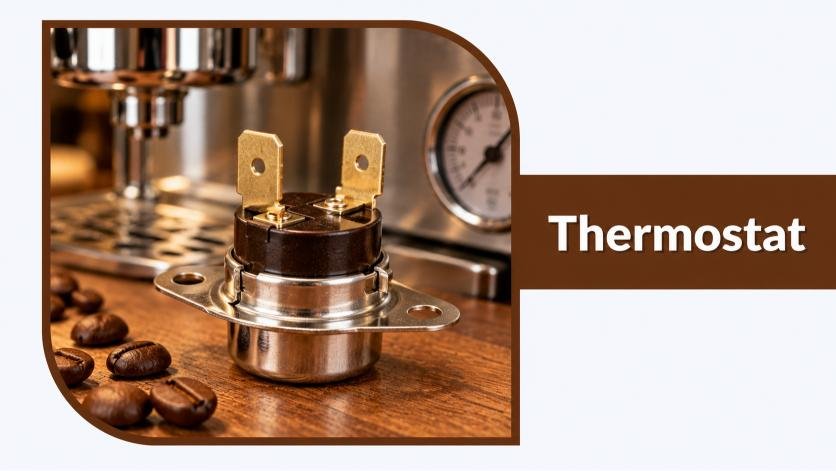

15. Thermostat

A thermostat monitors or controls temperature within an espresso machine’s heating system. In machines that use a conventional thermostat, it switches the heating element on or off when a particular temperature is reached. This helps regulate heating and prevents excessive temperature changes within its operating range. Some modern machines instead use electronic temperature sensors and control systems. Knowing the thermostat’s role can help you understand why temperature control is essential for consistent espresso extraction.

Main Functions of the Thermostat

• Monitors temperature within its operating range.
• Controls heating cycles in compatible machines.
• Helps prevent excessive heating.
• Supports reliable operation of the heating system.

Common Types of Thermostats

Mechanical thermostats use temperature-sensitive mechanisms to switch a heating circuit on or off. Thermal cutouts provide additional protection by interrupting heating when temperatures exceed a specified limit. Other machines use electronic temperature sensors connected to a control board. Although these components may work together, they perform different roles, so replacement parts must match the machine’s design and specifications.

How to Maintain the Thermostat

Thermostats generally require inspection as part of heating-system servicing rather than routine user cleaning. Keep the machine maintained according to the manufacturer’s instructions, and address heating problems promptly. If the temperature becomes unstable, a technician can test the thermostat alongside the heating element and other control components. Never bypass a thermostat or thermal safety device to keep the machine running, as this can create a serious safety risk.

Signs of Thermostat Problems

Inconsistent brewing temperatures, unexpected heating interruptions, or water that becomes excessively hot may indicate a temperature-control problem. However, similar symptoms can arise from a faulty sensor, heating element, or electronic controller. Professional testing can help identify the actual cause and ensure that the machine’s temperature and safety controls continue to operate correctly.

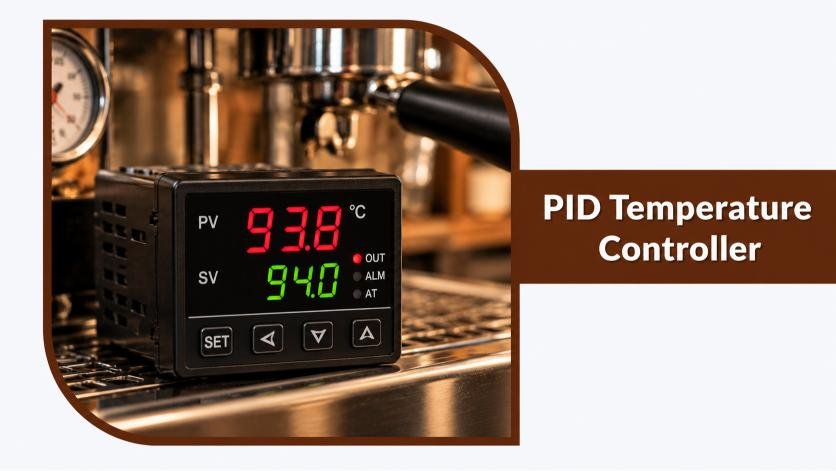

16. PID Temperature Controller

A PID temperature controller is an electronic system that helps maintain a target temperature in compatible espresso machines. PID stands for proportional, integral, and derivative, referring to three ways the controller responds to temperature differences over time. By adjusting the heating system’s operation, a PID controller can reduce temperature fluctuations and support more consistent brewing conditions. Not every coffee machine includes this feature, but it can be particularly useful for users who want greater control over espresso extraction.

Main Functions of the PID Temperature Controller

• Helps maintain a selected temperature.
• Adjusts heating behavior in response to temperature changes.
• Reduces temperature fluctuations in compatible systems.
• Supports repeatable brewing conditions.

Common Types of PID Temperature Controllers

Some machines feature built-in PID controllers with digital displays that allow users to adjust brewing temperature. Other models integrate the controller into the main electronic system, with settings available through a menu or service interface. The controller works together with a temperature sensor and heating element. Available features vary by model, so consult the manufacturer’s specifications before changing settings.

How to Maintain the PID Temperature Controller

Keep the control panel clean and dry, and use the manufacturer’s recommended temperature settings as a starting point. Avoid changing advanced service parameters without understanding their purpose. If the displayed temperature becomes unstable or differs significantly from expected behavior, the problem may involve the sensor, wiring, heating element, or controller itself. Electronic diagnosis and repairs should be handled by a qualified technician.

Signs of PID Controller Problems

Unexpected temperature changes, error messages, unresponsive controls, or heating behavior that does not match the selected setting may indicate a problem. However, the controller may be working correctly while another component provides inaccurate readings. Check the user settings and consult the machine manual first. If the issue continues, a technician can inspect the sensor, controller, and heating circuit.

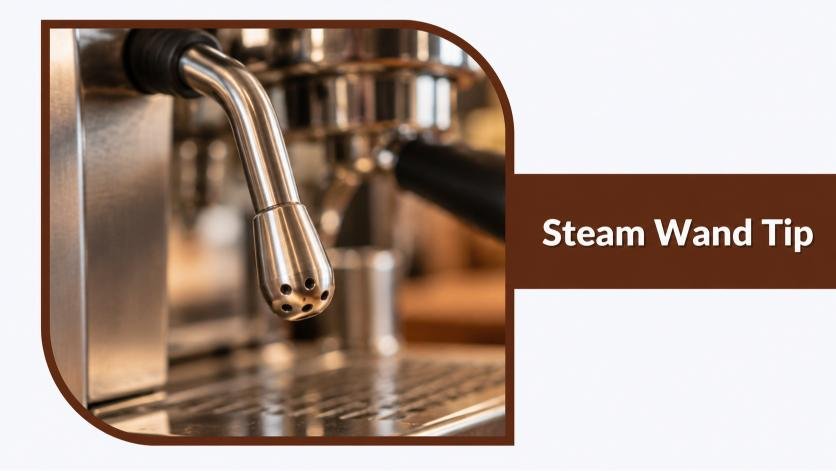

17. Steam Wand

The steam wand is a metal tube that delivers steam for heating and texturing milk. It is essential for preparing cappuccinos, lattes, and other milk-based coffee drinks. Steam heats the milk while introducing air to create foam with the desired texture. A clean, properly functioning wand makes milk preparation easier and helps prevent dried milk residue from affecting flavor, hygiene, and steam performance.

Main Functions of the Steam Wand

• Delivers steam into milk.
• Heats milk for espresso-based drinks.
• Helps create foam and a smooth milk texture.
• Allows users to control milk preparation manually.

Common Types of Steam Wands

Traditional steam wands require users to control the wand’s position and steam flow while texturing milk. Some entry-level machines use panarello-style attachments that make introducing air easier. Commercial and higher-end machines may feature multi-hole tips and articulated wand designs that offer greater control. The appropriate technique depends on the machine, the milk being used, and the desired texture.

How to Clean and Maintain the Steam Wand

Wipe the wand with a clean, damp cloth immediately after steaming milk. Purge steam before and after use when recommended by the manufacturer to help clear residue from the tip. Never allow milk to dry on the wand, because it becomes harder to remove and can block the steam openings. Follow the machine’s instructions for deeper cleaning and safe handling of hot steam.

Signs of Steam Wand Problems

Weak steam, blocked tip openings, irregular steam flow, and difficulty producing smooth milk foam may indicate that the wand needs cleaning or inspection. Milk residue is a common cause, but problems with the steam valve or boiler can produce similar symptoms. Clean the wand and inspect its tip first. If the problem continues, arrange professional servicing.

18. Steam Wand Tip

The steam wand tip is the small component fitted to the end of the steam wand. It contains one or more openings through which steam enters the milk. The number and arrangement of these openings influence steam distribution and the speed of milk texturing. Although the tip is small, keeping it clean is important because dried milk can block its openings and reduce steam performance.

Main Functions of the Steam Wand Tip

• Directs steam into the milk.
• Controls how steam exits the wand.
• Supports milk heating and foam formation.
• Influences the speed and control of milk texturing.

Common Types of Steam Wand Tips

Steam wand tips vary in the number and arrangement of their openings. Single-hole tips can provide slower, more controlled steam delivery, while multi-hole tips may distribute steam more widely and heat milk faster. Some machines use specialized tips designed for a particular wand. Always follow the manufacturer’s compatibility recommendations because an unsuitable tip can affect performance and safe operation.

How to Clean and Maintain the Steam Wand Tip

Wipe the wand after every use and purge it according to the manufacturer’s instructions. If the tip becomes blocked, allow the machine to cool and depressurize as directed before removing it, if removal is permitted. Use a suitable cleaning tool to clear the openings without damaging them. Reinstall the tip securely and check that steam flows normally before preparing milk.

Signs of Steam Wand Tip Problems

Reduced steam flow, visible milk residue, or steam emerging unevenly from the openings may indicate a blockage. A loose or damaged tip can also affect performance. Clean the tip carefully and inspect it for visible damage. If steam flow remains abnormal, the problem may involve the wand, steam valve, or boiler rather than the tip itself.

19. Steam Valve

The steam valve controls the release of steam from the machine to the steam wand. Depending on the design, it may operate through a rotating knob, lever, or electronic control. Opening the valve allows steam to flow, while closing it stops the supply. A properly functioning valve helps users control milk preparation and prevents unwanted steam release when the machine is not in use.

Main Functions of the Steam Valve

• Controls steam flow to the wand.
• Allows users to start and stop steaming.
• Helps regulate steam delivery during milk preparation.
• Stops the steam supply when properly closed.

Common Types of Steam Valves

Manual steam valves often use a knob or lever to open and close the steam passage. Some designs use a rotary mechanism, while others rely on a lever-operated valve. Certain modern machines use electronically controlled steam delivery. The internal construction varies, but every valve must match the machine’s pressure and temperature requirements.

How to Maintain the Steam Valve

Wipe the external control and surrounding area to remove moisture and milk residue. Avoid forcing a stiff knob or lever, as doing so may damage the mechanism. If steam continues to escape when the valve is closed, or the control becomes difficult to operate, arrange an inspection. Internal repairs should be performed by a qualified technician because steam systems can retain high temperatures and pressure.

Signs of Steam Valve Problems

Steam leaking from the wand when the valve is closed, difficulty adjusting steam flow, or a control that feels unusually stiff may indicate a problem. Inconsistent steam delivery can also result from blockages or insufficient boiler performance. Check the wand tip for residue and consult the machine’s manual. If the problem persists, professional servicing may be necessary.

20. Steam Boiler

A steam boiler is a dedicated heating vessel used in dual-boiler espresso machines to produce and store steam for milk preparation. Unlike a single-boiler system that switches between brewing and steaming temperatures, a dual-boiler machine can maintain separate temperature conditions for these functions. This arrangement allows users to prepare espresso and steam milk with less waiting between tasks. Not every espresso machine has a separate steam boiler, as the design depends on the heating system.

Main Functions of the Steam Boiler

• Heats water to produce steam.
• Supplies steam to the steam wand.
• Supports milk frothing and texturing.
• Allows separate steam and brewing temperature control in dual-boiler machines.

Common Steam Boiler Designs

Steam boilers vary in capacity, material, and construction according to the machine’s size and intended use. Stainless steel and copper are used in different designs, with distinct thermal and maintenance characteristics. In a dual-boiler system, the steam boiler operates separately from the brewing boiler. Other machines use a single boiler or heat exchanger to provide both brewing water and steam.

How to Clean and Maintain the Steam Boiler

Follow the manufacturer’s instructions for water quality, descaling, and scheduled servicing. Mineral deposits can accumulate inside the boiler and affect heating efficiency or steam production. Some machines require professional descaling or internal inspection, so do not assume that a home descaling procedure is suitable. Never open a hot or pressurized boiler. Allow it to cool and depressurize according to the manufacturer’s safety instructions before approved maintenance.

Signs of Steam Boiler Problems

Insufficient steam, slow heating, unstable steam pressure, and persistent heating errors may indicate a problem with the steam boiler or its supporting components. Leaks and unusual noises also warrant attention. However, a faulty heating element, temperature sensor, pressure control, or steam valve can cause similar symptoms. If the machine cannot produce adequate steam after basic checks, arrange professional servicing.

21. Drip Tray

The drip tray sits beneath the group head and cup area, collecting drips, spills, and excess water during everyday coffee preparation. Many machines have a removable tray and a grid that supports cups while allowing liquid to drain below. Although it may seem like a minor accessory, the drip tray helps keep the countertop clean and makes the machine easier to maintain. Emptying and washing it regularly also prevents unpleasant odors and residue buildup.

Main Functions of the Drip Tray

• Collects spilled water and excess liquid.
• Catches drips from the group head and surrounding areas.
• Provides a base for the drip grid.
• Helps keep the countertop clean and dry.

Common Types of Drip Trays

Removable plastic trays are common in home coffee machines because they are lightweight and easy to wash. Stainless steel trays are often found in higher-end and commercial equipment. Some models include a float indicator that signals when the tray is full, while others connect to a drain hose for continuous wastewater removal. The correct tray depends on the machine’s dimensions and design.

How to Clean and Maintain the Drip Tray

Empty the drip tray regularly, ideally every day or whenever it becomes full. Wash the tray and grid with warm water and mild dish soap, then rinse and dry them thoroughly. Check corners and drainage openings for coffee residue or mineral deposits. If the machine has a float indicator, ensure it moves freely. Regular cleaning prevents odors, staining, and overflow.

Signs of Drip Tray Problems

A cracked tray, damaged grid, or tray that no longer fits correctly may require replacement. Water overflowing onto the countertop can mean the tray is full, blocked, or incorrectly positioned. Machines with drainage connections may also experience a blocked outlet. Empty the tray, check its alignment, and inspect the drainage area before deciding whether a component needs repair.

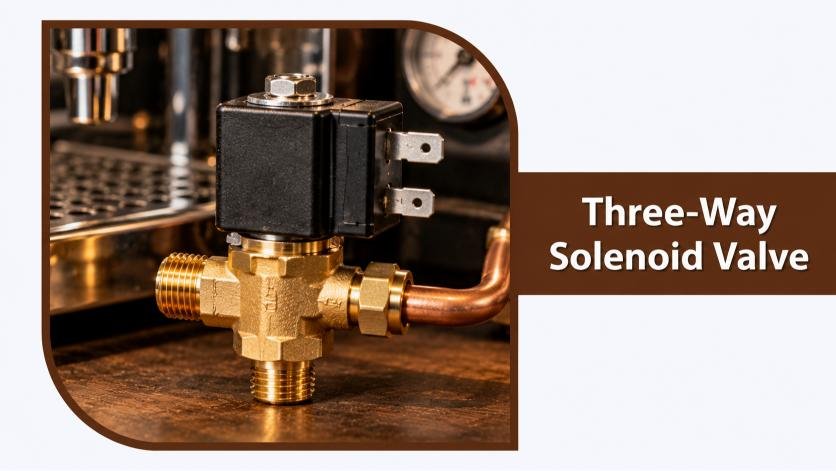

22. Three-Way Solenoid Valve

The three-way solenoid valve is an electrically operated component found in many pump-driven espresso machines. It controls water movement during brewing and helps release pressure from the group head when extraction stops. On machines equipped with this valve, residual pressure is directed toward a drainage outlet, helping reduce dripping and making it easier to remove the portafilter after brewing. This small component plays an important role in the machine’s water-flow system.

Main Functions of the Three-Way Solenoid Valve

• Controls water flow during brewing.
• Helps release pressure after extraction.
• Directs excess water toward the drainage system.
• Supports cleaner portafilter removal.

How the Three-Way Solenoid Valve Works

When brewing begins, the valve opens the appropriate water path to supply the group head. When brewing stops, the valve changes position and allows residual pressure to escape through a separate outlet. This helps relieve pressure inside the group head and reduces the amount of water left around the coffee puck. The precise operation depends on the machine’s design and control system.

How to Clean and Maintain the Three-Way Solenoid Valve

Follow the manufacturer’s cleaning and descaling recommendations to help prevent mineral deposits and coffee residue from interfering with valve operation. Backflushing with an approved cleaning product is appropriate only for machines designed to support it. If the valve becomes blocked or fails electrically, professional servicing may be necessary. Internal maintenance should only be carried out when the machine is safely disconnected, cool, and depressurized.

Signs of Three-Way Solenoid Valve Problems

A machine may fail to release group-head pressure properly, produce unusual dripping, or discharge little water into the drip tray after brewing. A blocked valve can also cause poor water flow, while an electrical fault may prevent the valve from switching correctly. These symptoms can have other causes, so consult the machine’s troubleshooting instructions and arrange professional inspection if the problem continues.

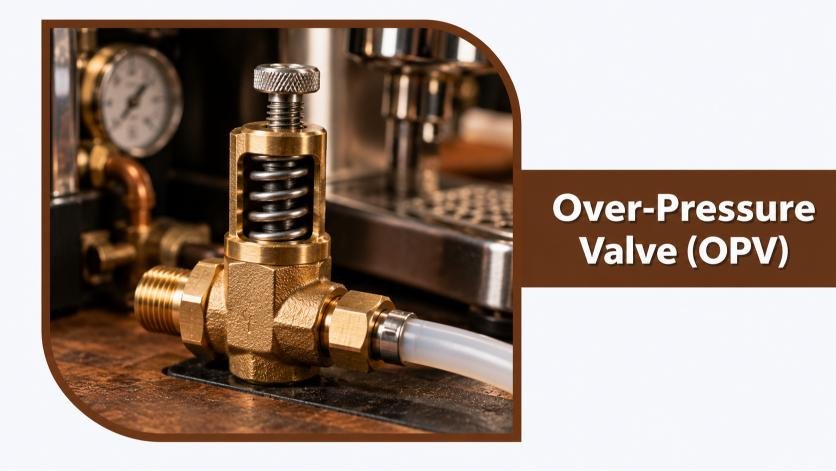

23. Over-Pressure Valve (OPV)

The over-pressure valve, commonly called the OPV, helps limit excessive pump pressure in espresso machines that use this type of pressure-control system. When pressure rises above the valve’s set point, it allows some water to bypass the brewing circuit, depending on the machine’s design. This helps keep brewing pressure within the intended range. Not every coffee machine has an adjustable OPV, and the valve’s operation varies according to the pump and water-circuit arrangement.

Main Functions of the Over-Pressure Valve

• Helps limit excessive pump pressure.
• Supports controlled brewing pressure.
• May redirect excess water through a bypass circuit.
• Helps maintain stable operation of the water system.

How the Over-Pressure Valve Works

During brewing, the pump supplies water to the coffee puck. If pressure reaches the OPV’s set point, the valve opens to redirect some water away from the brewing path. This helps prevent pressure from exceeding the intended operating level. The setting should follow the machine manufacturer’s specifications because changing it without proper testing may affect extraction and overall performance.

How to Maintain the Over-Pressure Valve

Use suitable water and follow the manufacturer’s maintenance schedule to reduce mineral buildup in the water circuit. Avoid adjusting the OPV simply to achieve a particular pressure reading without understanding the machine’s design and measurement conditions. If pressure becomes inconsistent, have the valve inspected along with the pump and other related components. Internal pressure-system repairs should be performed by a qualified technician.

Signs of Over-Pressure Valve Problems

Pressure that is consistently too high or too low, unexpected water bypass, and inconsistent extraction may indicate an OPV problem. However, similar symptoms can arise from pump wear, a blocked water path, or an inaccurate pressure gauge. Consult the machine’s operating instructions before assuming the valve is faulty. If performance remains abnormal, professional diagnosis can determine whether the OPV requires inspection or replacement.

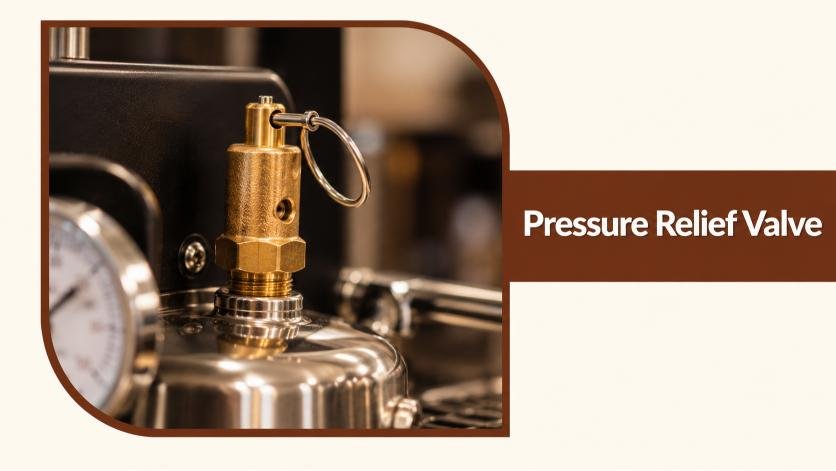

24. Pressure Relief Valve

A pressure relief valve is a safety component designed to release excessive pressure when required by the machine’s system. Its precise role depends on the espresso machine’s construction, as it may protect a boiler or another pressurized part of the water circuit. It should not be confused with an OPV, which generally regulates pump pressure during brewing. Understanding the difference helps users appreciate why pressure-control components are essential for safe operation.

Main Functions of the Pressure Relief Valve

• Helps release excessive pressure when its set point is reached.
• Supports the safety of a pressurized system.
• Helps protect compatible components from abnormal pressure.
• Works as part of the machine’s pressure-management system.

How the Pressure Relief Valve Works

Under normal operating conditions, the valve remains closed while system pressure stays within its intended range. If pressure exceeds the specified threshold, the valve opens to release pressure through its designed outlet. Its precise operation depends on the component’s design and operating conditions. Because relief valves serve a safety purpose, they must never be blocked, bypassed, or replaced with an incompatible part.

How to Maintain the Pressure Relief Valve

Follow the manufacturer’s inspection and servicing recommendations. Do not attempt to adjust, dismantle, or test the valve while the machine is hot or pressurized. If the valve repeatedly releases water or steam, stop using the machine if it is safe to do so and arrange professional inspection. A technician can check the valve and investigate other possible causes, including temperature-control faults or excessive system pressure.

Signs of Pressure Relief Valve Problems

Repeated discharge of water or steam, visible leakage around the valve, or abnormal pressure behavior may indicate a problem. A valve that remains open can cause pressure loss, while one that fails to operate correctly may compromise system safety. Do not block the outlet or attempt an improvised repair. Have the machine inspected by a qualified technician.

25. Drain Hose

The drain hose carries wastewater away from a coffee machine designed for a drainage connection. It may connect to the drip tray or an internal drainage outlet and lead toward a suitable drain. Some home espresso machines do not have a drain hose because their drip trays must be emptied manually. In machines that use one, the hose helps manage excess water and keeps the coffee preparation area cleaner.

Main Functions of the Drain Hose

• Carries wastewater away from the machine.
• Connects compatible drainage outlets to a drain.
• Helps prevent excess water from accumulating in the drip tray.
• Supports convenient wastewater management in plumbed machines.

Common Types of Drain Hoses

Drain hoses vary in length, diameter, flexibility, and material according to the machine’s requirements. Flexible hoses are useful where the machine needs to be positioned near a drain, while some commercial installations use more rigid drainage arrangements. The hose must tolerate the expected water temperature and fit the designated outlet securely. Always select a compatible replacement rather than using a general-purpose hose with unsuitable dimensions or materials.

How to Clean and Maintain the Drain Hose

Inspect the hose periodically for kinks, blockages, leaks, or visible deterioration. Follow the manufacturer’s instructions for cleaning the drainage system and ensure the hose is routed correctly so wastewater can flow away freely. Avoid sharp bends that restrict drainage. Before disconnecting any hose, turn off the machine and allow hot components to cool. Replace a damaged hose with an approved compatible part.

Signs of Drain Hose Problems

Water pooling beneath the machine, slow drainage, unpleasant odors, or leakage around hose connections may indicate a blockage or damaged hose. A kinked hose can also prevent wastewater from flowing properly. Check that the hose is positioned correctly and the drain outlet is clear. If the hose is cracked, loose, or repeatedly blocked, replace it or seek professional servicing.

26. Power Switch

The power switch is the control that turns a coffee machine on or off. It allows electricity to reach the machine’s operating systems, including the heating components, pump, and electronic controls, depending on the design. Although it may look like a simple button or toggle, the power switch is essential for everyday operation. A properly functioning switch helps users operate the machine conveniently and safely while making it easier to manage their coffee preparation routine.

Main Functions of the Power Switch

• Turns the coffee machine on and off.
• Controls the machine’s main power supply.
• Allows the heating and brewing systems to operate when activated.
• Helps users shut down the machine after use.

Common Types of Power Switches

Coffee machines use different power switch designs depending on their construction. A rocker switch is commonly found on home espresso machines, while a toggle switch uses a small lever to change positions. Some modern machines use a push-button control or electronic standby function. The correct switch depends on the machine’s electrical rating, mounting dimensions, and manufacturer specifications.

How to Maintain the Power Switch

Keep the area around the switch clean and dry. Avoid pressing it with wet hands or allowing water to enter the control panel. If the switch becomes loose, sticks, or fails to respond, stop using the machine if there are signs of electrical damage. Internal inspection and replacement should be performed by a qualified technician with the machine safely disconnected from power.

Signs of Power Switch Problems

A machine that fails to turn on, switches off unexpectedly, or responds intermittently may have a faulty power switch. However, a damaged power cord, electrical outlet, fuse, or internal control component can cause similar symptoms. Check the user manual and basic power supply first. If the problem continues, arrange professional inspection rather than attempting an improvised electrical repair.

27. Control Panel

The control panel is the main interface through which users operate and adjust their coffee machine. Depending on the model, it may include buttons, rotary knobs, indicator lights, a digital display, or a touchscreen. Through these controls, users can start brewing, select programmed drink volumes, adjust temperatures, and monitor machine status. A well-designed control panel makes coffee preparation more convenient and helps users access the machine’s available features.

Main Functions of the Control Panel

• Provides access to brewing and operating controls.
• Allows users to select available coffee settings.
• Displays operating status or error messages on compatible machines.
• Supports temperature and drink-volume adjustments where available.

Common Types of Control Panels

Basic coffee machines may use physical buttons and indicator lights for simple operation. Semi-automatic espresso machines often have brew switches and separate steam controls. More advanced models may feature digital displays or touchscreens that offer programmable drinks, temperature adjustments, and maintenance reminders. The available functions depend on the machine’s design, so not every control panel provides the same level of customization.

How to Maintain the Control Panel

Wipe the panel with a soft, slightly damp cloth when the machine is switched off and disconnected from power if required by the manufacturer’s instructions. Avoid spraying cleaning products directly onto buttons or displays, as moisture can enter the electronics. Use the controls gently and keep the surrounding area dry. If the display becomes unresponsive or buttons stop working, consult the manufacturer’s troubleshooting guide.

Signs of Control Panel Problems

Unresponsive buttons, a blank display, flickering indicators, or settings that change unexpectedly may indicate a control panel issue. These symptoms can also result from power supply problems, loose connections, or a fault in the main electronic board. Restart the machine only as recommended by the manufacturer. Persistent problems should be checked by a qualified technician.

28. Temperature Sensor

A temperature sensor measures the temperature of water, a boiler, or another part of the heating system. It sends information to the machine’s controller, which uses the reading to manage heating and maintain suitable brewing conditions. Accurate temperature measurements help an espresso machine heat water appropriately for extraction and, where applicable, steam production. If the sensor provides incorrect readings, the machine may struggle to maintain stable temperatures even when its heating element is working properly.

Main Functions of the Temperature Sensor

• Measures temperature within the heating system.
• Sends temperature readings to the control system.
• Supports automatic heating adjustments.
• Helps maintain consistent brewing or steaming conditions.

Common Types of Temperature Sensors

Many coffee machines use thermistors, which change electrical resistance as temperature changes. Some systems use resistance temperature detectors, commonly known as RTDs, for precise temperature measurement. Other designs may use different sensor technologies according to the controller and heating arrangement. Sensors are not universally interchangeable, so a replacement must match the machine’s specifications and electrical requirements.

How to Maintain the Temperature Sensor

Temperature sensors generally require inspection during machine servicing rather than routine user cleaning. Follow the manufacturer’s recommendations for descaling and maintaining the heating system, as mineral deposits and other faults can affect temperature performance indirectly. If the displayed temperature seems inaccurate or the machine heats inconsistently, arrange a proper diagnosis. Electrical testing and sensor replacement should be performed by a qualified technician.

Signs of Temperature Sensor Problems

Unstable temperature readings, persistent heating errors, or water that seems too hot or too cool may indicate a sensor problem. Some machines may also stop heating if the controller detects an implausible reading. However, a faulty thermostat, heating element, or controller can cause similar symptoms. Professional testing can identify the actual source of the problem and help restore reliable temperature control.

29. Hot Water Spout

The hot water spout is the outlet used to dispense hot water from a coffee machine. It is useful for preparing Americanos, diluting espresso, warming cups, and making certain hot beverages. Depending on the machine, the spout may connect to the boiler or a dedicated hot water circuit. Its design and temperature depend on the machine’s operating system, making it important to handle the outlet carefully and follow the manufacturer’s instructions.

Main Functions of the Hot Water Spout

• Dispenses hot water for different beverages.
• Allows users to prepare Americanos and similar drinks.
• Helps warm cups before brewing.
• Provides hot water without using the espresso extraction outlet.

Common Types of Hot Water Spouts

Some espresso machines feature a dedicated metal spout with a manual hot water valve. Commercial machines may have separate outlets designed for frequent beverage preparation, while certain home models combine hot water delivery with another outlet arrangement. The spout’s shape, length, and position vary by machine. Always use the outlet specified by the manufacturer rather than assuming that every espresso machine has a separate hot water spout.

How to Clean and Maintain the Hot Water Spout

Wipe the outside of the spout after use and follow the manufacturer’s instructions for flushing the hot water circuit. Mineral deposits may build up around the outlet, especially when the machine uses water with a high mineral content. Avoid touching the outlet while hot water is flowing. If the spout becomes blocked or water flow decreases, consult the machine’s maintenance guide before attempting any deeper cleaning.

Signs of Hot Water Spout Problems

Slow water flow, irregular dispensing, leakage around the outlet, or visible mineral deposits may indicate a problem. A blocked spout or valve can restrict delivery, while a water supply issue may cause similar symptoms. Clean accessible surfaces and follow the recommended flushing procedure. If the problem continues, professional servicing may be necessary.

30. Cup Warmer

The cup warmer is a surface, usually located on top of an espresso machine, designed to keep cups warm before coffee is served. Pre-warmed cups can help reduce the temperature drop that occurs when hot espresso enters a cold cup. Some cup warmers use heat transferred from the machine’s boiler, while others use a dedicated heating element. Not every coffee machine includes an actively heated cup warmer, so its operation depends on the model.

Main Functions of the Cup Warmer

• Keeps cups warm before serving.
• Helps reduce heat loss when espresso enters a cold cup.
• Provides a convenient storage area for clean cups.
• Supports a consistent coffee-serving routine.

Common Types of Cup Warmers

Passive cup warmers use heat generated by the machine during operation. Active cup warmers use a dedicated heating system to warm cups independently. Some machines have a flat metal surface, while others feature raised areas or cup racks to organize different cup sizes. The warming performance depends on the design, machine temperature, and time allowed for the cups to warm.

How to Maintain the Cup Warmer

Keep the surface clean and dry, and remove dust, coffee residue, and water marks regularly. Use a suitable cloth and avoid abrasive cleaners that could damage the finish. Place cups securely on the warming area and follow the manufacturer’s guidance about which materials are suitable. If the warmer uses electricity, do not attempt to open or repair its heating components yourself.

Signs of Cup Warmer Problems

A cup warmer that stays cold despite the machine operating normally may have a heating issue if it is designed to heat actively. Uneven warmth or visible surface damage can also indicate a problem. However, passive warmers may take longer to warm cups or may not become very hot. Check the machine’s manual to understand how the warmer is designed to operate.

31. Brew Group

The brew group is the assembly responsible for holding or receiving coffee and managing the brewing process in a coffee machine. Its design differs between traditional espresso machines and automatic coffee makers. In a traditional espresso machine, the group head and related components form the main brewing interface. In many super-automatic machines, the brew group is a removable or serviceable assembly that receives ground coffee, compresses it, and allows water to pass through it.

Main Functions of the Brew Group

• Supports the coffee extraction process.
• Holds or positions coffee within the brewing assembly.
• Allows brewing water to pass through the coffee.
• Works with other components to produce the finished beverage.

Common Types of Brew Groups

Traditional espresso machines use a fixed group head where a portafilter holds the coffee basket. Super-automatic coffee machines often use an internal brew group that handles several steps automatically, including coffee dosing or compression, depending on the model. Some automatic machines have removable brew groups for user cleaning, while others require servicing by a technician. The exact construction depends on the machine’s design.

How to Clean and Maintain the Brew Group

Follow the manufacturer’s instructions for cleaning the brew group. Removable assemblies may need to be rinsed periodically, dried properly, and reinstalled correctly. Some automatic machines also require a dedicated cleaning cycle or approved cleaning tablets. Do not apply lubricant or dismantle internal mechanisms unless the manufacturer specifically recommends it. Proper maintenance helps prevent coffee residue from interfering with movement and water flow.

Signs of Brew Group Problems

Inconsistent coffee output, unusual mechanical noises, brewing errors, or difficulty completing a cycle may indicate a brew group issue. Coffee residue can restrict movement, while worn seals or internal mechanisms may require servicing. Follow the machine’s cleaning instructions and check for user-accessible problems first. If the machine continues to malfunction, arrange professional inspection.

32. Water Filter

A water filter helps improve the suitability of water used in a coffee machine. Depending on its design, it may reduce certain impurities, manage mineral content, or improve taste and odor. Water quality matters because minerals can accumulate inside boilers and water circuits, while undesirable tastes can affect the finished coffee. A filter must be selected according to the machine’s requirements, as different filter types provide different levels of treatment.

Main Functions of the Water Filter

• Helps improve water quality for coffee preparation.
• May reduce certain substances depending on the filter type.
• Can help manage mineral buildup when designed for that purpose.
• Supports a cleaner-tasting beverage.

Common Types of Water Filters

Some machines use activated-carbon filters to reduce certain tastes, odors, and compounds such as chlorine. Other filters use ion-exchange media to reduce particular minerals or adjust water characteristics. Some espresso machines use replaceable cartridge filters fitted inside the reservoir, while plumbed machines may use external filtration systems. Not every filter removes every contaminant, so choose one suited to the water supply and machine specifications.

How to Maintain the Water Filter

Replace the filter according to the manufacturer’s schedule and the volume of water used. Follow the recommended installation and flushing procedure before preparing coffee with a new cartridge. A filter that is overdue for replacement may become less effective or restrict water flow. Use water within the machine’s specified hardness and mineral range, because filtration does not always eliminate the need for descaling.

Signs of Water Filter Problems

Reduced water flow, an overdue filter indicator, or changes in water taste may suggest that the filter needs replacement. Incorrect installation can also restrict the water supply. Check that the cartridge is seated correctly and that the machine’s settings are appropriate for the installed filter. If flow remains poor after replacing it, investigate other possible causes.

33. Check Valve

A check valve is a one-way valve that allows water to flow in the intended direction while restricting reverse flow. In coffee machines, it may be used in the pump or water circuit to help maintain the correct direction of water movement. Depending on the design, the check valve can support pressure control and help prevent water from flowing backward into another part of the system. Its precise function varies according to the machine’s internal plumbing arrangement.

Main Functions of the Check Valve

• Allows water to flow in one direction.
• Helps prevent unwanted reverse flow.
• Supports correct operation of the water circuit.
• Helps maintain intended pressure and water movement in compatible systems.

Common Types of Check Valves

Spring-loaded check valves use a spring mechanism to help close the valve when forward pressure is insufficient. Other designs use a ball, disc, or similar moving component to control one-way flow. The materials and construction depend on the machine’s water system and operating conditions. A replacement must match the required flow direction, connection type, pressure rating, and manufacturer specifications.

How to Maintain the Check Valve

Follow the machine’s recommended maintenance and descaling procedures to help limit mineral deposits in the water circuit. Check valves are usually internal components, so routine user maintenance typically does not involve removing them. If the machine experiences reverse flow or pressure-related problems, a technician can inspect the valve and surrounding components. Avoid dismantling the water system without the correct service instructions.

Signs of Check Valve Problems

Water flowing backward, inconsistent pressure, or difficulty maintaining normal water movement may indicate a faulty check valve. A valve that becomes stuck or blocked can also restrict flow. These symptoms may have other causes, including pump faults or mineral buildup. Professional diagnosis can help establish whether the check valve requires cleaning, repair, or replacement.

34. Pressurestat

A pressurestat is a pressure-sensitive control device used in some espresso machines to regulate boiler pressure. It typically switches the heating element on or off according to the pressure inside the boiler, helping maintain the intended operating range. Pressurestat-controlled systems are common in certain traditional espresso machines, while other models use electronic temperature controls or different pressure-management arrangements. Understanding this component helps explain how some machines regulate boiler heating without relying on a PID controller.

Main Functions of the Pressurestat

• Monitors boiler pressure.
• Controls heating cycles according to pressure.
• Helps maintain the intended boiler operating range.
• Supports steam production in compatible machines.

Common Types of Pressurestats

Mechanical pressurestats use a pressure-sensitive mechanism to operate an electrical switch when boiler pressure changes. Different models have different pressure ranges, electrical ratings, and connection designs. Some espresso machines instead use electronic sensors and control boards to manage boiler heating. Pressurestats are not interchangeable with temperature sensors or pressure relief valves because they perform different functions.

How to Maintain the Pressurestat

Pressurestats should be inspected as part of professional machine servicing. Follow the manufacturer’s maintenance recommendations and avoid adjusting the device without appropriate training and test equipment. If the machine heats inconsistently or boiler pressure behaves abnormally, a technician can inspect the pressurestat and related heating controls. Because it operates alongside electrical and pressurized components, internal repairs should be handled by a qualified professional.

Signs of Pressurestat Problems

Unstable boiler pressure, inconsistent steam production, repeated heating cycles, or a machine that fails to heat properly may indicate a pressurestat issue. However, a faulty heating element, pressure gauge, or another control component can produce similar symptoms. If the machine shows signs of overheating or abnormal pressure, stop using it if safe to do so and arrange professional inspection.

35. Insulated Water Pipe

An insulated water pipe carries water through parts of a coffee machine while reducing heat transfer to the surrounding components or environment. Depending on the design, insulation may help maintain water temperature, protect nearby parts from heat, or reduce unwanted heating of external surfaces. Not every coffee machine uses insulated pipes, as their presence depends on the internal layout and heating system. When fitted, these pipes contribute to the machine’s overall thermal management.

Main Functions of the Insulated Water Pipe

• Carries water between internal components.
• Helps reduce unwanted heat transfer.
• Supports temperature management in compatible systems.
• Can help protect nearby components from excessive heat exposure.

Common Types of Insulated Water Pipes

Coffee machines may use metal water pipes with heat-resistant insulating sleeves or specially designed insulated tubing. The pipe material and insulation depend on the water temperature, pressure, available space, and machine construction. Some machines use uninsulated pipes where additional thermal protection is unnecessary. Always use manufacturer-approved replacement parts because ordinary tubing may not withstand the required heat or pressure.

How to Maintain the Insulated Water Pipe

Follow the manufacturer’s service recommendations and inspect accessible areas for signs of leakage or visible insulation damage. Do not remove protective insulation unless the approved service procedure requires it. Internal pipework should be checked by a qualified technician if the machine develops water leaks, abnormal heating, or reduced performance. Use only components rated for the machine’s operating temperature and pressure.

Signs of Insulated Water Pipe Problems

Leaks, damaged insulation, unusual heat around nearby components, or inconsistent water delivery may indicate a problem. However, these symptoms can also arise from loose connections, blocked passages, or other heating-system faults. Stop using the machine if a significant leak or electrical hazard is present. Arrange professional inspection to determine whether the pipe, insulation, or another component requires repair.

Frequently Asked Questions About Coffee Machine Parts and Functions

1. What Are the Most Important Parts of a Coffee Machine?

The most important parts depend on the machine type. In an espresso machine, the group head, portafilter, filter basket, water pump, and heating system are essential for brewing. Other components, such as the steam wand, control panel, and pressure-control devices, support milk preparation, operation, and safe performance.

2. What Is the Difference Between a Coffee Machine and an Espresso Machine?

A coffee machine is a broad term covering several brewing methods, including drip coffee makers, pod machines, and espresso machines. An espresso machine typically uses pressure to force hot water through finely ground coffee. Because their brewing methods differ, their internal components and functions are not always the same.

3. Which Coffee Machine Parts Need Regular Cleaning?

The parts that usually need frequent cleaning include the portafilter, filter basket, group head, shower screen, drip tray, and steam wand. Automatic coffee machines may also require cleaning of the internal brew group. Follow the manufacturer’s cleaning schedule to prevent residue buildup and maintain good coffee flavor.

4. How Does a Coffee Machine Pump Work?

The pump moves water through the machine and supplies the pressure or flow required for brewing. Espresso machines commonly use vibratory or rotary pumps, while other coffee makers may use different water-delivery systems. The pump works alongside valves, pipes, and heating components to deliver water to the brewing chamber.

5. Why Is My Coffee Machine Not Heating Water?

A coffee machine may fail to heat water because of a faulty heating element, thermostat, temperature sensor, power supply, or control system. Mineral buildup may also affect performance in some machines. Check the user manual and basic power supply, but leave internal electrical testing and repairs to a qualified technician.

6. Do All Coffee Machines Have the Same Parts?

No. Coffee machine components vary according to the brewing method, brand, model, and level of automation. A drip coffee maker does not normally use the same group head and portafilter arrangement as an espresso machine. Even espresso machines can differ in their pumps, boilers, valves, sensors, and control systems.

7. How Can I Find the Correct Replacement Parts for My Coffee Machine?

Start by checking the brand, model number, and serial or product identification details on your machine. Consult the manufacturer’s parts list or service manual to verify the correct component and specifications. Before ordering, confirm the dimensions, fittings, electrical ratings, and compatibility. For internal electrical or pressurized components, professional installation is often the safest option.
